PRODUCT DETAILS

Dual-Spectrum Pro LED Panel – 3 000 W Total Output, 850 Nm & 660 Nm, Salon-Grade Power for Home Wellness

Dual-Spectrum LED Panel – 3 000 W Total Output, 850 Nm & 660 Nm, Salon-Grade Power for Home Wellness

Name: Dual-Spectrum LED Panel – 3 000 W Total Output, 850 Nm & 660 Nm, Salon-Grade Power for Home Wellness
Brand: MEZANS
Rating: 5.0 (14 reviews)

Mezans provides the powerful and adjustable energy density in comparison to other manufacturers.And we could customized the housing color and shapes , wavelengths,and Application startup picture

Model:
QB72
Brand:
MEZANS

Availability:

Quantity:



Get Custom Quote Add to Basket

High-Output LED Matrix
1,152 dual-chip LEDs deliver uniform irradiance across nine narrow bands from 480 nm to 1060 nm, covering blue, red and near-infrared in a single panel.
Wavelength-Level Control
Every band can be dimmed 1 %–100 % and pulsed 1 Hz–10 kHz independently, so you can build unlimited on-device routines or save four personal presets.
One-Touch Quick Modes
Four factory programs—Recover, Beauty, Relax, Sleep—start instantly; each parameter can still be edited and stored for next use.

10 kHz Pulse Capability
Hardware-grade modulation up to 10 kHz supports both surface and deeper-area applications. (Hardware spec only; not a medical claim.)

Flexible Mounting
Table-top, vertical stand or wall-mount options plus 360° rotation and 15° tilt let the panel fit salons, gyms, living rooms or travel kits.
Safety First
30-min auto shut-off, gradual ramp-up/down, over-temp cut-out and a magnetic eye shield create a comfortable, worry-free session every time.

red light therapy panel at home red light therapy panel for face red light therapy panel for sauna Red Light Therapy for Beauty Skin full body red light therapy panel large red light therapy panel

Related Products

DM421 Tri-fold Lighted Makeup Mirror

DM403 Detachable Beauty LED Mirror with Magnetic

DM401 Single sided desktop beauty mirror with lights

Get instant access to personalized quotes for our custom beauty mirrors. Leave your email below please.
We respect your privacy and will only use your email to send you the requested information.

Quick Links

Product Category

Tel: +86-18824584290

info@mezans.com

Parameter	Specification
Product Name	QB72-PRO Quantum Board / LED Red Light Therapy Panel
Color	White
Material	Metal
Dimensions	240 × 270 × 70 mm
Waterproof Rating	IPXX
Power Supply	Direct (AC)
Battery	None
Operating Time (Default)	10 minutes per session
Operating Environment	-5°C to 45°C
Adapter Input	AC 100–240V / 1A, 50/60Hz
Rated Power	108W
LED Type	Dual-chip, high-efficiency LEDs
LED Quantity	72 pcs (144 chips)
Control Methods	Touch panel / APP (Bluetooth) / Remote control / Mechanical buttons
Beam Angle	30°
Timer	Default 10 minutes
Dimming Range	1%–100% (independent per wavelength)
Pulse Frequency	1–10,000 Hz (independent per wavelength)
Auto Sleep	30 seconds (default)
Electric Field	0 V/m
Magnetic Field	0.00 µT

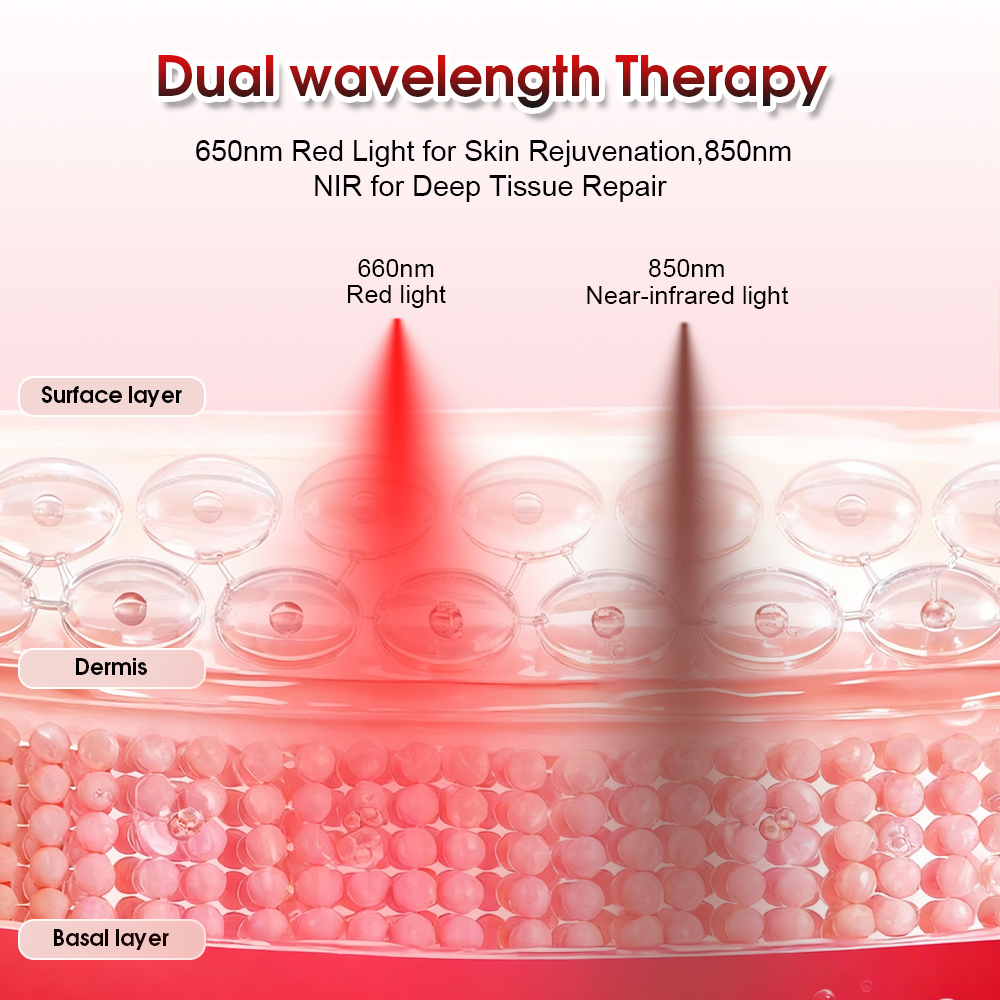

Wavelength Modes	Touch panel: 8 independent wavelengths: 590nm, 630nm, 660nm, 670nm, 810nm, 830nm, 850nm, 1060nm
Wavelength Modes	Button control: 2 independent wavelengths: 650nm, 850nm
Test Environment	30°C, 70% RH
Irradiance @ 0 inches	190–535 mW/cm²
Surface Temp (30 min)	To be measured

Parameter	Specification
Product Name	QB72-PRO Quantum Board / LED Red Light Therapy Panel
Color	White
Material	Metal
Dimensions	240 × 270 × 70 mm
Waterproof Rating	IPXX
Power Supply	Direct (AC)
Battery	None
Operating Time (Default)	10 minutes per session
Operating Environment	-5°C to 45°C
Adapter Input	AC 100–240V / 1A, 50/60Hz
Rated Power	108W
LED Type	Dual-chip, high-efficiency LEDs
LED Quantity	72 pcs (144 chips)
Control Methods	Touch panel / APP (Bluetooth) / Remote control / Mechanical buttons
Beam Angle	30°
Timer	Default 10 minutes
Dimming Range	1%–100% (independent per wavelength)
Pulse Frequency	1–10,000 Hz (independent per wavelength)
Auto Sleep	30 seconds (default)
Electric Field	0 V/m
Magnetic Field	0.00 µT
Wavelength Modes	Touch panel: 8 independent wavelengths: 590nm, 630nm, 660nm, 670nm, 810nm, 830nm, 850nm, 1060nm
Wavelength Modes	Button control: 2 independent wavelengths: 650nm, 850nm
Test Environment	30°C, 70% RH
Irradiance @ 0 inches	190–535 mW/cm²
Surface Temp (30 min)	To be measured
