PRODUCT DETAILS

Manufacturer Red Light Therapy Belt Rechargeable Battery USB Type C 660nm 850nm Pain Relief Belt for Lumbar Muscle Relaxation

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Mezans provides professional-grade red light therapy belts featuring 660nm and 850nm dual wavelengths for targeted abdominal and lower back care.
Compared with other manufacturers, our belts deliver stronger irradiance and superior heat dissipation, ensuring consistent performance for professional wellness applications.
OEM customization options include housing color, LED wavelength ratio, logo printing, and start-up interface.
  • WST526

  • MEZANS

Availability:
Quantity:

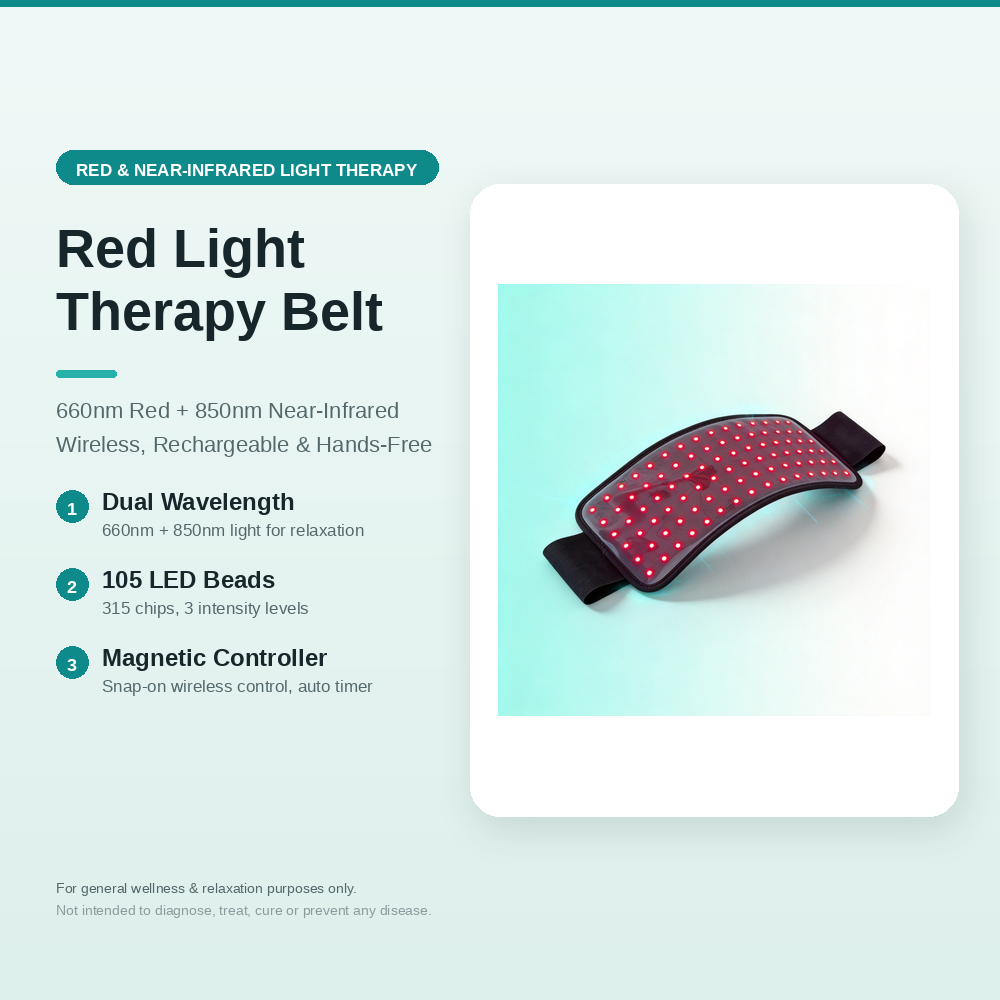

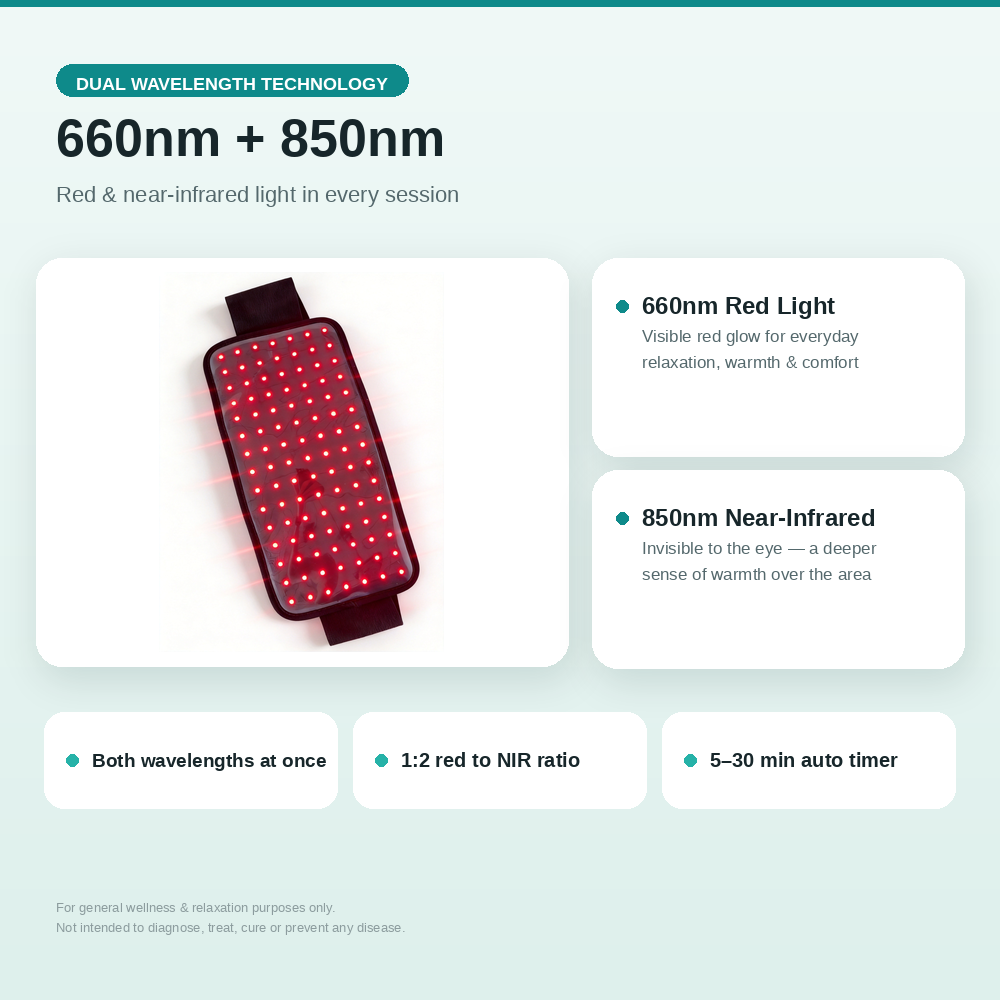

  • Dual Wavelength Red + Near-Infrared Therapy:660nm red light and 850nm near-infrared light work together to support muscle relaxation, promote recovery, and enhance overall wellness — two therapeutic wavelengths in one device.

  • 105 LED Beads · 315 Chips · Large Coverage Area: High-density array of 105 tri-chip 5050 LEDs (315 chips total) on a 400×200mm pad delivers broad, uniform light coverage across the lower back and waist — significantly more LEDs than typical belts on the market.

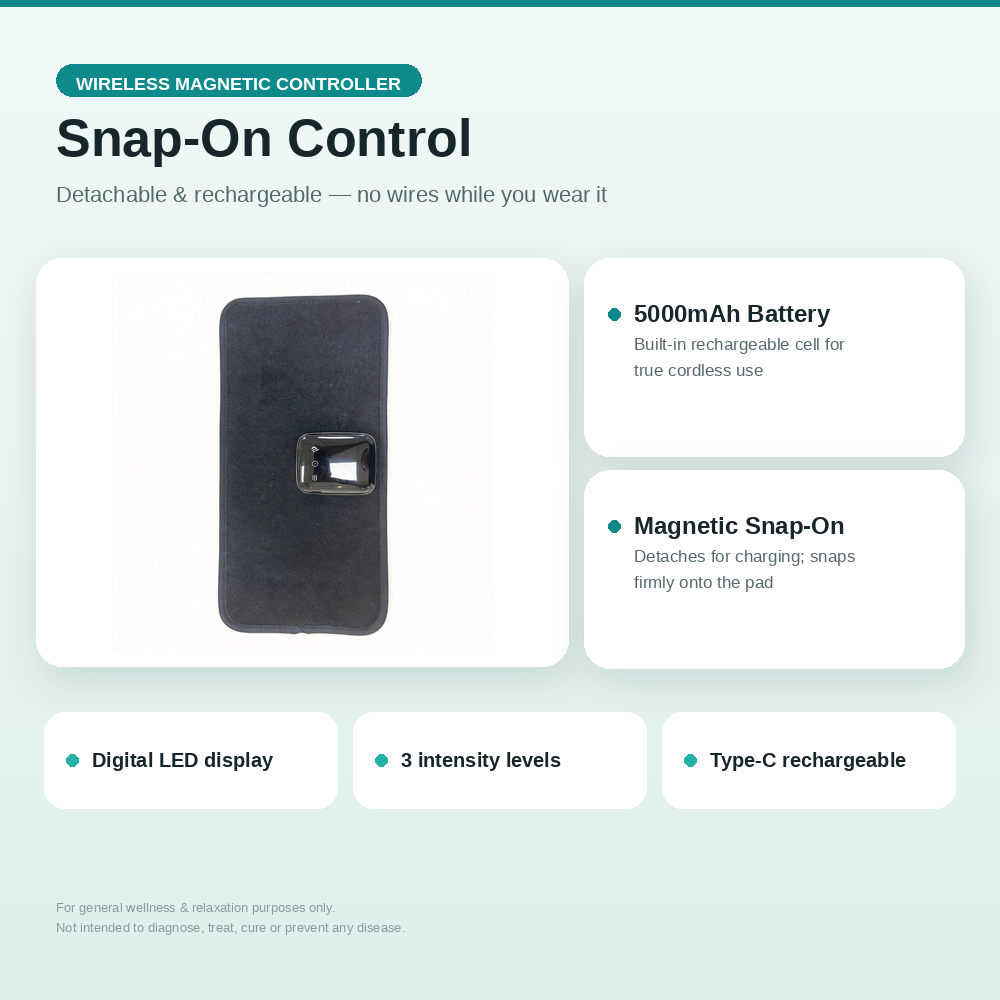

  • Cordless & Portable — Snap-On Magnetic Controller :Wireless design with a magnetic snap-on controller. 5000mAh rechargeable battery (Type-C, ~2.5h full charge) allows hands-free use anywhere — at home, in the office, or post-workout.

  • Fully Customizable Sessions :3 intensity levels (50% / 75% / 100%), 3 pulse modes (10Hz / 40Hz / steady), and 6 timer settings (5–30 min auto-off) let users tailor every session to their comfort and goals.

  • Comfortable Fit for All Body Types :Flexible black neoprene pad with adjustable extension strap conforms to the waist and lower back curve. Soft, skin-friendly material ensures secure, comfortable wear for extended sessions.

  • Wipe-Clean Surface · Safe & Low Heat :Smooth IPX0-rated surface wipes clean easily. Surface temperature stays below 45°C for safe, comfortable use — no burns, no irritation, just gentle warmth.

wst526_listing_main_02wst526_listing_main_05 (2)wst526_listing_main_01wst526_listing_main_04wst526_listing_main_03wst526_listing_main_06wst526_main_white


Item Details

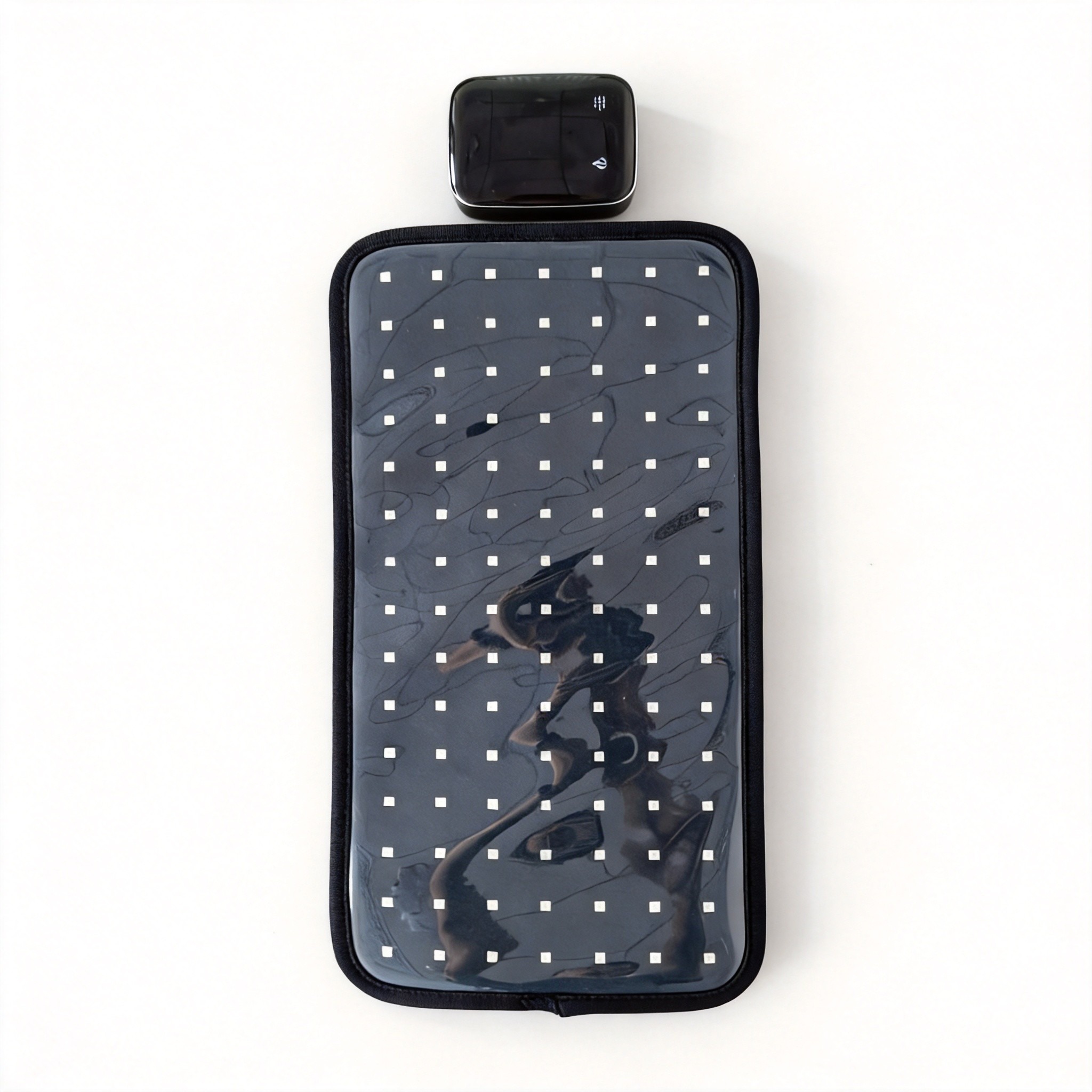

Product Name Red Light Mini Pad
Model WST526
Category Flexible Red & Near-Infrared Light Therapy Pad
Positioning At-home wellness light pad for flat-body areas — non-medical
Key Technology 105 pcs tri-chip 5050 LEDs (660nm red + 850nm near-infrared, 1:2 ratio)
Light Delivery Large-area light coverage, laid flat on abdomen, back, seat, etc.
Ideal For Abdomen care, back comfort, daily wellness routines at home
Control External magnetic controller (shared universal part) with built-in 5000mAh battery — fully cordless
Design Lightweight flexible pad; includes extension strap for securing to body or chair
Item Specification
LED Type 5050 tri-chip LEDs
LED Quantity 105 pcs (315 chips total)
Wavelengths 660nm red light + 850nm near-infrared (1:2)
Beam Angle ~120°
Power Output Approx. 10.5W (estimated at full output)
Irradiance Approx. 34–65 mW/cm² at skin contact (varies by level, to be verified)
Intensity Levels 3 levels — Low / Medium / High
Pulse Modes 10Hz pulse / 40Hz pulse / continuous
Timer 6 settings: 5 / 10 / 15 / 20 / 25 / 30 min, auto shut-off
Battery 5000mAh built into magnetic controller, with protection board
Charging Type-C, DC 5V/1A, approx. 2.5h full charge
Usage per Charge ≥60 min (target, to be verified)
Indicator No indicator light; beep confirmation on operation
Working Environment -5°C ~ 45°C
Protection Rating Not waterproof (IPX0), wipe clean only

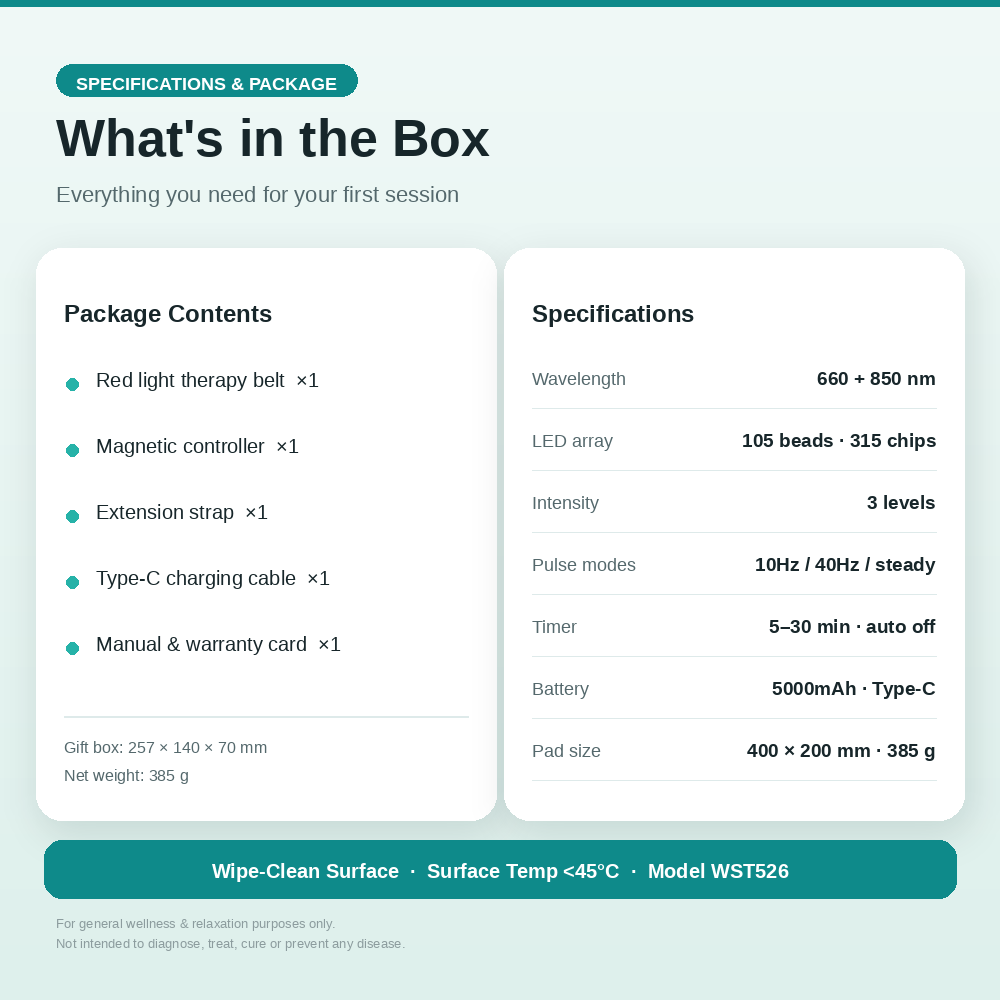

Item Qty
Red Light Mini Pad 1
Magnetic Controller (with 5000mAh battery) 1
Extension Strap 1
Type-C charging cable 1
User manual + warranty card 1
Item Specification
Pad Size 400 × 200 mm
Product Weight 385 g
Color Black
Materials Neoprene composite, stitched
